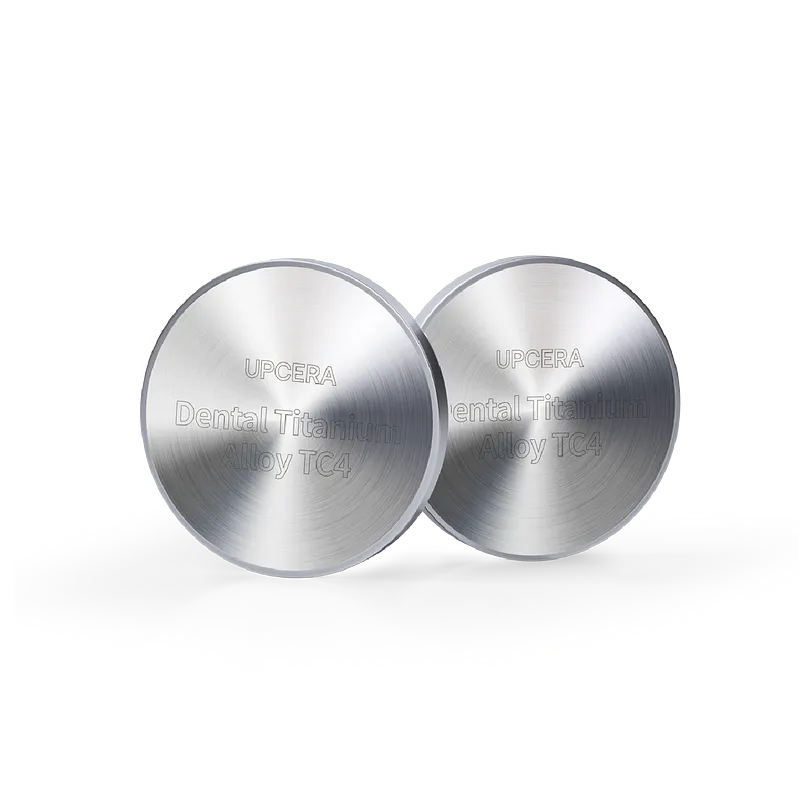

(Dental) Titanium Alloy
High performance titanium Grade 5 milling blank, especially designed for the use of CAD CAM milling systems
UPCERA
-
(Dental) Titanium Alloy
· Made from grade 5 titanium alloy TiAI6V4.
· Exceptional gold-ceramic bonding properties.
· Extremely corrosion resistant.
· Excellent biocompatibility.
· Particularly patient friendly due to low thermal conductivity.
· Perfectly suitable for implant-supported restorations, superstructures, bars, abutments, crowns and bridges.
Indications
Chemical Composition
Technical Data
0.2%, specified non proportional elongation strength Rp0.2/MPa
860MPa
Young's modulus
110GPa
Elongation after fracture
8%
Casting temperature
1700℃
Melting temperature
1640-1670℃
Density
4.4g/cm3
Max.firing temp.maximale
max.950℃
Linear expansion coefficient
10x10-6K-1
Hardness
295HV10
Tarnish resistance
Yes
Corrosion resistance
≤200μg/cm2
Tensile strength
885MPa
Model
