UPCERA
-
B52
· 12-inch touch screen,easy-to-use UI
· High Stability, high precision
· Easy to use, 24 hour continuous run
· One-cast steel structure delivers the highest level of stability
· High performance spindle with automatic tool changer
· Top class mechanical & electrical parts, protection module safeguards against power failure and low air pressure
Device Parameters
Dimensions
65*65*175cm
Weight
430kg
Voltage
220V/50Hz 110V/60Hz (Optional)
Power
4.5KW
Compatible Compressed Air
0.55-0.8 MPa
Spindle Speed
60,000 rpm
Processing accuracy
< 0.01mm
Tilt Angle
A axis is ±30°, B axis is ±360°
Number of Bur
16
Cooling Type
Water cooling
Materials
Titanium disc, Co-cr, Pre-milled Ti base, PMMA, Wax/ Glass ceramic (Optional)

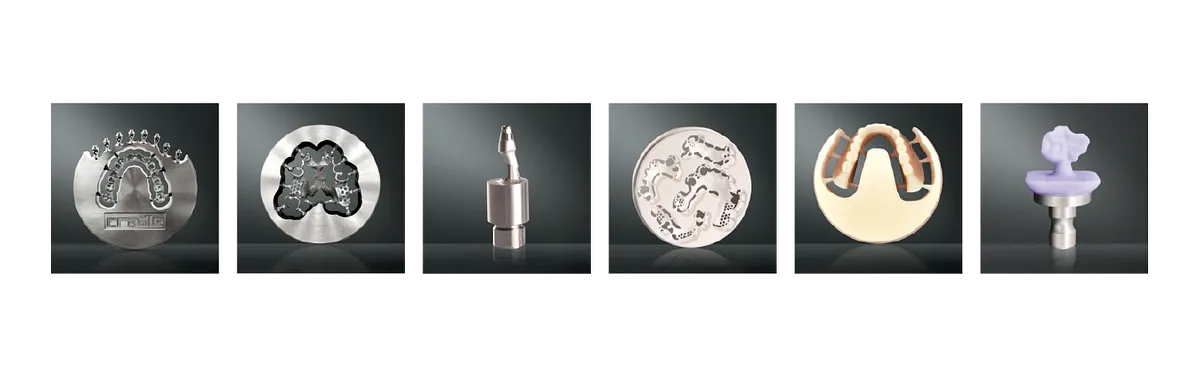

Application
Customized abutment, Implant bridge, Implant bar, Customized abutment, Coping, Crown, Bridge/Inlay, Veneer (Optional)
Milling Speed
Customized abutment (40 mins/unit)，Pre-milled abutment (15 mins/unit)，Glass ceramic (10-30 mins/unit)，PMMA (10 mins/pcs), Wax(3 mins/unit)，Titanium framework (180 mins/unit)
